Tundra 2007-2013 Rear Bumper

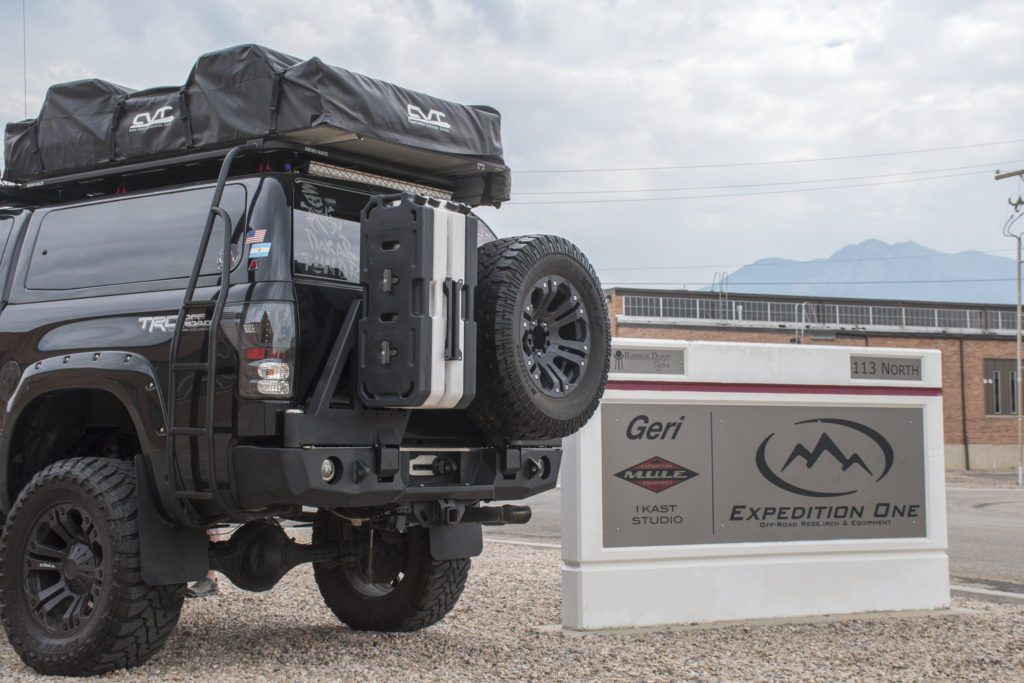

Toyota Tundra Dual Swing-Out Rear Bumper (2007-2013)
Toyota Tundra Dual Swing-Out Rear Bumper (2007-2013)
Expedition One dual swing-out rear bumper with our innovative, patented locking latch system! An intuitive new way to open and close your swing arms with ease and reliability.
These carriers can be locked into place when fully opened providing the flexibility needed for overlanding and off-roading, and the ease of access you want in your daily driver. Our additional mounting options provide further customization to create the perfect setup for your outdoor adventuring needs.
Available Mounting Accessory Options
Hi-Lift Mount
Hi-Lift/Pul Pal Mount
Expedition One Geri Fuel/Water Mount & Latch
Scepter/NATO Fuel Can Mount (does not currently work with water cans)
Spare Tire Mount (recommended up to 37" tire)
*Certain wheel/tire combinations may not fit the tire carrier such as the OEM spare wheel/tire.
FAQ
H--lift Jack: 60" jack will fit on the hi-lift/pullpal combo we just don't recommend it due to the height of the jack once mounted---it will sit approx 2' over back of truck.
Hi-lift/PullPal: can be mounted on either side of arm depending on configuration you are looking for.
Blind Spot Monitors: will not work with any aftermarket bumpers
Sensor Holes: will not work with this bumper due to limited spacing
Trailer plug: '07-13 stock set up mounts below vehicle( we make adjust design to relocate it in future models) 14+ mounts flush with bumper
Product Features:
- Comprised of a beefy 3/16 inch and 1/4 inch inner structure and 3/16 inch outer structure
- Integrated 1 inch thick shackle mounts, fits a 3/4 inch shackle
- Approximate weight 225lbs
- Optional textured black powder coat
- Optional rear winch plate mount can accommodate a winch rated 8,000-12,500 lbs
- Integrated 4.75 inch light ports
- Designed and Made 100% in the U.S.A. with US quality steel

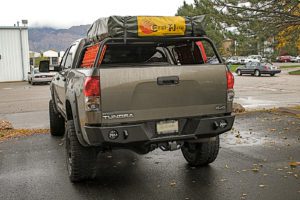

Tundra RangeMax Base Rear Bumper
Tundra RangeMax Base Rear Bumper
For the 2007- 2013 Toyota Tundra
Comprised of 3/16" and 1/4" inner structure and a 3/16" thick outer skin
Integrated feet forward winch mount
1" thick 3/4 recovery shackle mounts (3/4" shackles may be purchased here)
Optional textured black powder coat (see pricing options below).
Optional winch mount plate to accommodate winches rated between 8000-12,500 lbs.
Integrated 4.75" light ports (see pricing options below)
Designed and made in The U.S.A
Rear winch mount bracket can be added as an additional purchase
*Sensor holes locations
*Installing winch in rear bumper requires optional bracket
**Due to customer requests, we have added sensor hole locations as a standard feature on our base model tundra bumpers however, we cannot guarantee that the factory infrared sensors will work with the bumper.
* Please note that model years equipped with the blindspot monitor may not function with an aftermarket bumper due to the monitors capability to sense through steel.
Product Features:
- Comprised of a beefy 3/16 inch and 1/4 inch inner structure and 3/16 inch outer structure
- Integrated 1 inch thick shackle mounts fit a 3/4 inch shackle
- Optional textured black powder coat
- Optional winch plate mount can accommodate a winch rated 8,000-12,500 lbs
- Integrated 4.75 inch light ports
- Holes in bumper to accommodate the factory rear back up sensors if so equipped*
- Designed and Made in the U.S.A.
- Approximate weight 110lbs
