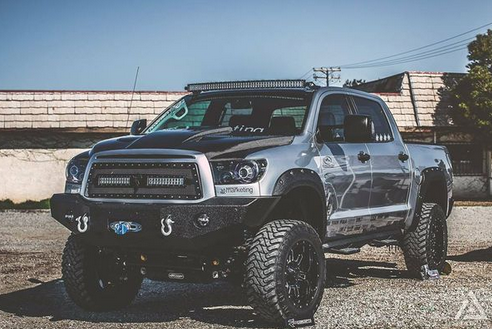

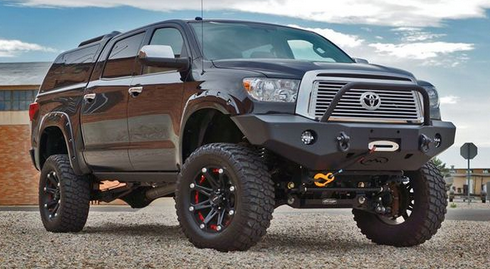

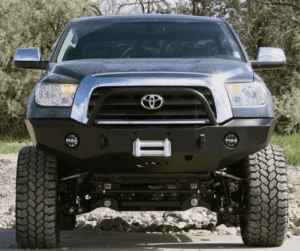

Tundra RangeMax Front Bumper with Center Hoop 2007-2013

Front winch bumper for 2007-2013 Tundra with optional center hoop

For the 2007 through 2013 Toyota Tundra*
Comprised of 3/16" and 1/4" inner structure and a 3/16" thick outer skin.
Integrated feet forward winch mount
Weighs approx. 150 lbs
1" thick 3/4 recovery shackle mount (purchase 3/4" shackles here)
Optional center hoop and textured black powder coat (see pricing options below).
Fits winches rated between 8000-12,500 lbs both integrated and non-integrated solenoids* non-integrated solenoid will likely require relocation of solenoid
Three light tabs on the top face of bumper for 6" to 8" lights (under center hoop if ordered with optional hoop)
4.75" integrated light ports (see light options below)
Designed and made in The U.S.A
Infrared sensor holes**

**Due to customer requests we have added sensor holes as a standard feature on our Tundra bumpers however, we cannot guarantee that your factory infrared sensors will work with our bumper. Plastic plugs to fill holes are included.

Product Features:

• Comprised of heavy duty 3/16 inch and 1/4 inch inner structure and 3/16 inch outer structure
• Includes center hoop
• Weighs approximately 150 lbs
• Integrated feet forward winch mount included. Fits most winches rated between 8000-12,500lbs (Exception - Warn M8274)
• Integrated 1 inch thick shackle mounts can accommodate a 3/4 inch shackle
• Standard feature is three light mount tabs for auxiliary lights.
• Integrated light ports hold a 4.75 inch round light
• Sensor Holes**
• Made and Designed in the U.S.A

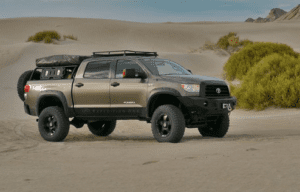

Tundra RangeMax Front Bumper Base Model 2007-2013

Front winch bumper for 2007-2013 Tundra

For the 2007 through 2013 Toyota Tundra*
Comprised of 3/16" and 1/4" inner structure and a 3/16" thick outer skin.
Integrated feet forward winch mount
Weighs approx. 150 lbs
1" thick 3/4 recovery shackle mount (purchase 3/4" shackles here)
Fits winches rated between 8000-12,500 lbs both integrated and non-integrated solenoids* non-integrated solenoid will likely require relocation of solenoid
Three light tabs on the top face of bumper for 6" to 8" lights (under center hoop if ordered with optional hoop)
4.75" integrated light ports (see light options below)
Designed and made in The U.S.A
Infrared sensor holes**

**Due to customer requests we have added sensor holes as a standard feature on our Tundra bumpers however, we cannot guarantee that your factory infrared sensors will work with our bumper. Plastic plugs to fill holes are included.

Product Features:

• Comprised of heavy duty 3/16 inch and 1/4 inch inner structure and 3/16 inch outer structure
• Weighs approximately 120lbs lbs
• Integrated feet forward winch mount included. Fits most winches rated between 8000-12,500 lbs (Exception - Warn M8274)
• Integrated 1 inch thick shackle mounts can accommodate a 3/4 inch shackle
• Standard feature is three light mount tabs for auxiliary lights.
• Integrated light ports hold a 4.75 inch round light
• Designed to work with factory sensor holes if so equipped**
• Made and Designed in the U.S.A.

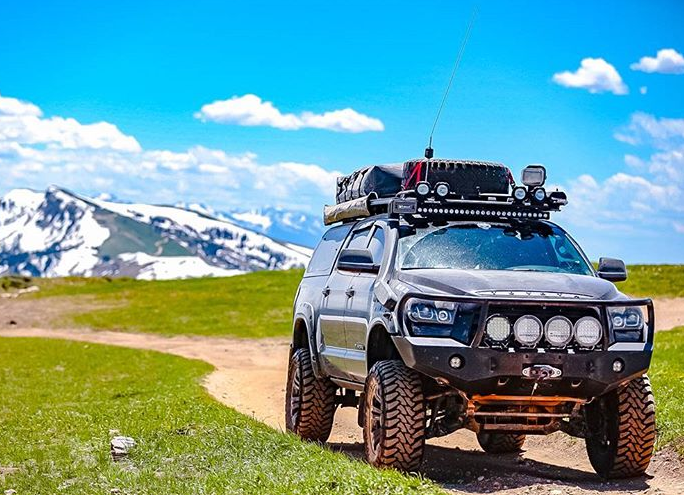

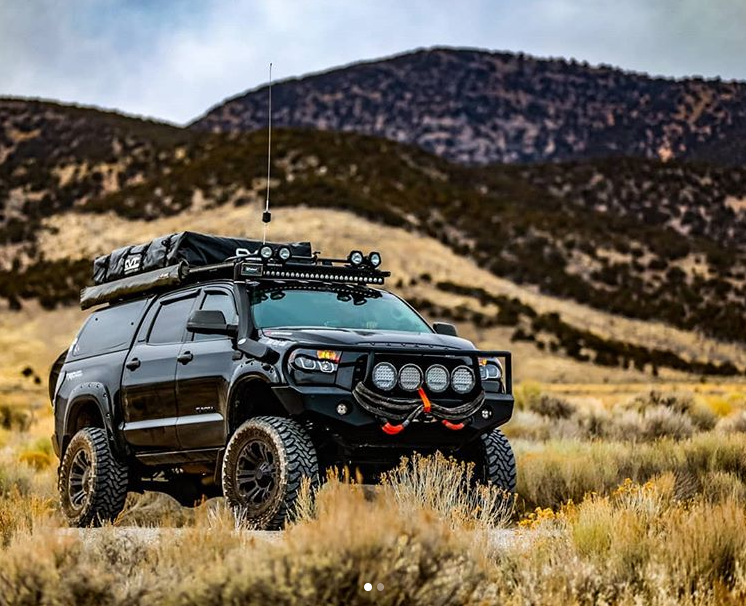

Tundra RangeMax Front Bumper Bull Bar 2007-2013

Standard Features

Comprised of heavy duty 3/16 inch and 1/4 inch inner structure and 3/16 inch outer structure
Additional Bull Bar style hoops
Weighs approximately 180 lbs
Integrated feet forward winch mount included. Fits most winches rated between 8000-12,500lbs. *Winches with integrated solenoid are best fit.
Integrated 1 inch thick shackle mounts can accommodate a 3/4 inch shackle (purchase here)
Standard feature is three light mount tabs for auxiliary lights.
Integrated light ports hold a 4.75 inch round light
Made and Designed in the U.S.A.
*Due to customer requests we have added sensor holes as a standard feature on our Tundra bumpers, however, we cannot guarantee that your factory infrared sensors will work with our bumper. Plastic plugs to fill holes are included

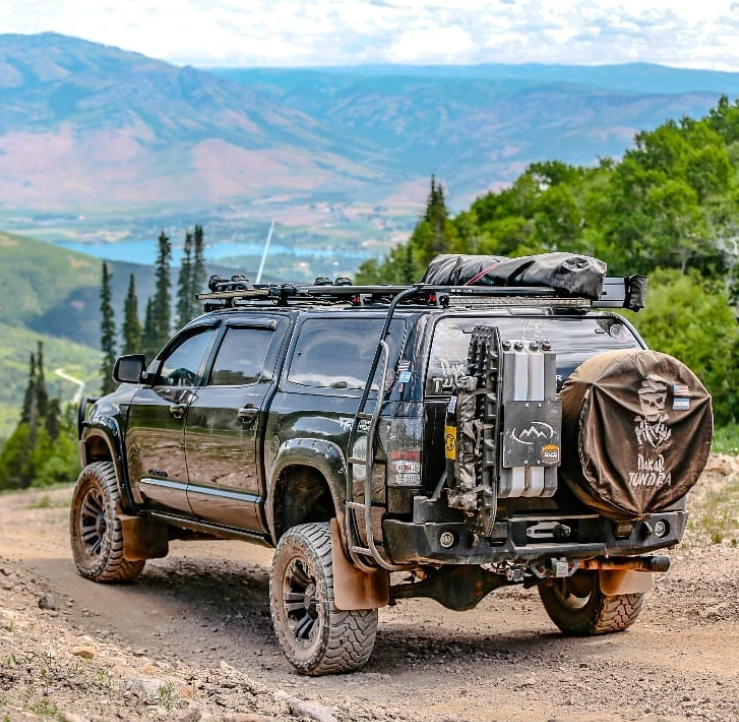

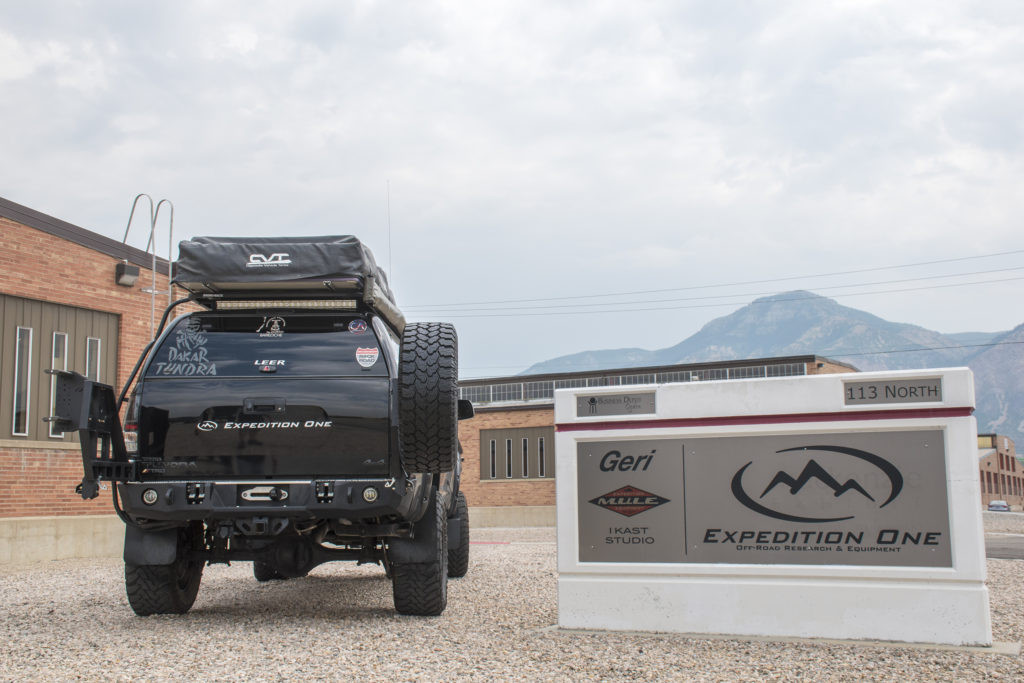

Toyota Tundra Dual Swing-Out Rear Bumper (2007-2013)

Expedition One dual swing-out rear bumper with our innovative, patented locking latch system! An intuitive new way to open and close your swing arms with ease and reliability.

These carriers can be locked into place when fully opened providing the flexibility needed for overlanding and off-roading, and the ease of access you want in your daily driver. Our additional mounting options provide further customization to create the perfect setup for your outdoor adventuring needs.

Available Mounting Accessory Options

Hi-Lift Mount
Hi-Lift/Pul Pal Mount
Expedition One Geri Fuel/Water Mount & Latch
Scepter/NATO Fuel Can Mount (does not currently work with water cans)
Spare Tire Mount (recommended up to 37" tire)

*Certain wheel/tire combinations may not fit the tire carrier such as the OEM spare wheel/tire.

FAQ

H--lift Jack: 60" jack will fit on the hi-lift/pullpal combo we just don't recommend it due to the height of the jack once mounted---it will sit approx 2' over back of truck.
Hi-lift/PullPal: can be mounted on either side of arm depending on configuration you are looking for.
Blind Spot Monitors: will not work with any aftermarket bumpers
Sensor Holes: will not work with this bumper due to limited spacing
Trailer plug: '07-13 stock set up mounts below vehicle( we make adjust design to relocate it in future models) 14+ mounts flush with bumper

Tundra 07-13 models Series S3 Single Swing Rear Bumper Carrier System

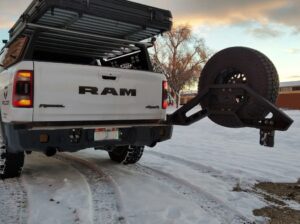

*Shown on 19+ Ram 1500 / Jeep Gladiator above. New Images coming soon!*

The Expedition One Trail Series S3 Single Swing Rear Bumper Carrier System latch design for the Tundra 07-13 models



Featuring a first of its kind latch mechanism allowing for an intuitive and rugged system to keep your tire and gear secure out on the trails.

These carriers can be locked into place when fully opened providing the flexibility needed for overlanding and off-roading, and the ease of access you want in your daily driver. Our additional mounting options provide further customization to create the perfect setup for your outdoor adventuring needs.


Features:

Patent-Pending locking latch system design that offers an intuitive and easy way to access your truck
Weighs approx. 200 lbs
Universal spare tire mount included in bumper price
Optional back-up camera mount
Retains use of factory sensor holes. *Purchase of replacement sensor bezels is recommended if replacing the plastic OEM bumper
Additional Expedition One mounting products for Hi-lift and PullPal, Geri /Scepter/NATO cans
Holds up to a 40" tire with certain wheel/tire combinations (recommended size: up to a 37" tire)
Retains use of oem/stock receiver hitch
Quick access to arm bearings for easy maintenance
1" thick 3/4" recovery shackle mounts welded inside and out with additional internal reinforcement
Rear winch-capable up to 10k lbs
Light ports fit up to 4.75" round light
Comprised of 3/16" and 1/4" inner structure and a 3/16" thick outer skin
100% Designed & Made here in the U.S.A with Rocky Mountain steel

Configurable Bolt-On Mounting Options. Can fit 1 accessory in addition to the tire at one time (with the exception of the horizontal hi-lift mount which sits behind the spare and does not take up mounting space on the arm):

Hi-Lift Jack Mount
Hi-Lift Jack/PullPal Mount
Expedition One Geri Fuel/Water Mount & Latch
Scepter/NATO Fuel Can Mount

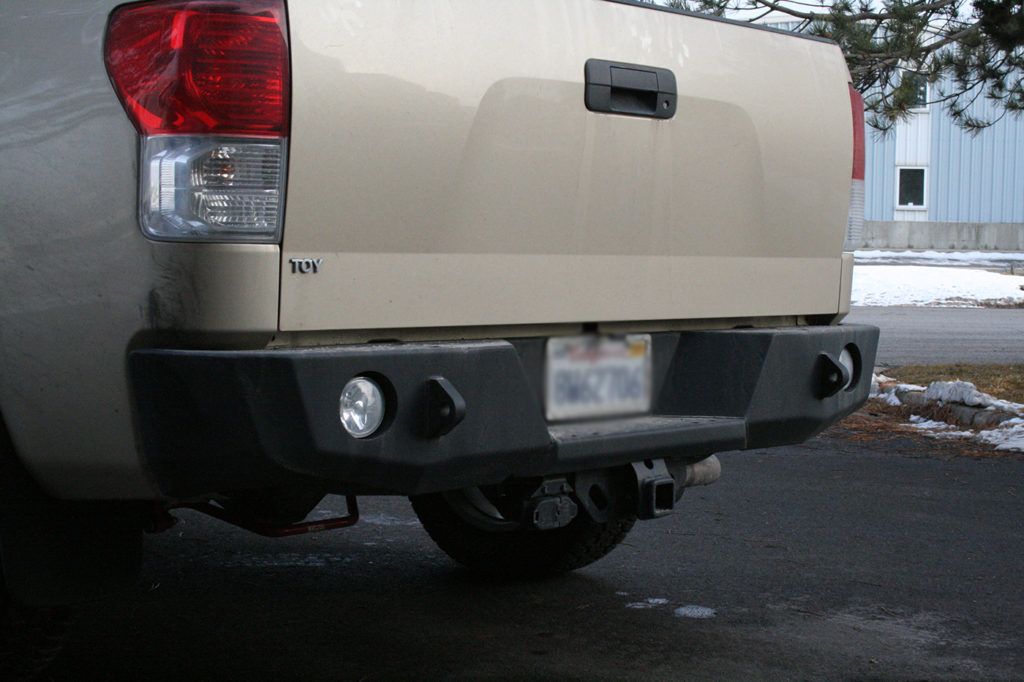

Toyota Tundra Base Rear Bumper (2007-2013)

For the 2007- 2013 Toyota Tundra

Comprised of 3/16" and 1/4" inner structure and a 3/16" thick outer skin
Integrated feet forward winch mount
1" thick 3/4 recovery shackle mounts (3/4" shackles may be purchased here)
Optional textured black powder coat (see pricing options below).
Optional winch mount plate to accommodate winches rated between 8000-12,500 lbs.
Recommended Winch: ComeUp Seal Gen2 9.5rsi
Integrated 4.75" light ports (see pricing options below)
Designed and made in The U.S.A
Rear winch mount bracket can be added as an additional purchase
Infrared sensor holes**
*Installing winch in rear bumper requires optional bracket

**Due to customer requests, we have added sensor hole locations as a standard feature on our tundra bumpers however, we cannot guarantee that the factory infrared sensors will work with the bumper.

* Please note that model years equipped with the blindspot monitor may not function with an aftermarket bumper due to the monitors capability to sense through steel.

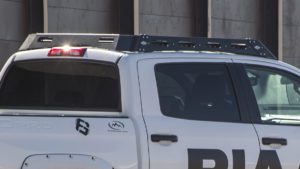

Toyota Tundra 2007-2021 Mule Ultra Rack

Made of lightweight aluminum construction, our Mule roof rack brings some exciting new changes and features to the roof rack market.

Lightweight, aluminum construction
Optional front fascia light bar cutout (fits up to a 40" led light bar)
Dynamic load capacity: 250lbs | Static load capacity: 500lbs
modular design
adjustable flooring design
flexible tie-down points
form fitting around each vehicle application
some drilling required
*Currently available for Crew Max models only*

RACK MODEL OUTSIDE WIDTH INSIDE WIDTH OUTSIDE LENGTH INSIDE LENGTH OUTSIDE HEIGHT

TUNDRA 53.59” 45.96” 64.49” 51.51” 5.49”
PRODUCT FEATURES:
Lightweight, aluminum construction
modular design
adjustable flooring design
flexible tie-down points
form fitting around each vehicle application
optional front fascia light bar cutout
Fits up to a 40" led light bar
