Grenadier

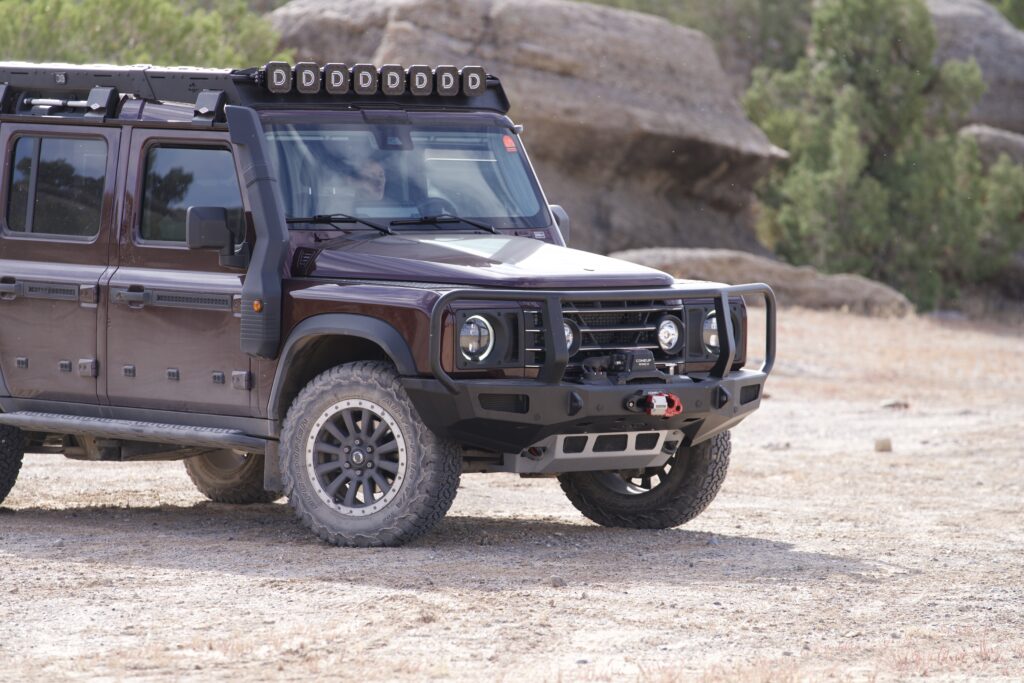

2022+ Ineos Grenadier Front Bumper
2022+ Ineos Grenadier Front Bumper
· Approx. weight: 130-150lbs depending on hoop option
· Comprised of 3/16" steel
· Includes 3/16" HD steel skid plate for added protection
· Optional powder coating with multi stage processing
· Bumper design incorporates recovery mounts from stock bumper in addition to heavy duty welded in bumper recovery mounts
·Includes relocation points for with front sensors
· Open winch access for easy use. Fits up to a 12.5 winch. Recommended winch Solo 12.5
· Does not reuse any oem lights or
· Available as a base front bumper, with a single hoop or full wrap-around bull-bar style hoop (shown in photo)
· 100% Designed and Made in the USA with US steel
Winch Info
· Works with winches rated up to 12,500 lbs
· Recommended Winch: ComeUp Winch Solo 12.5s
· Open winch access for easy use

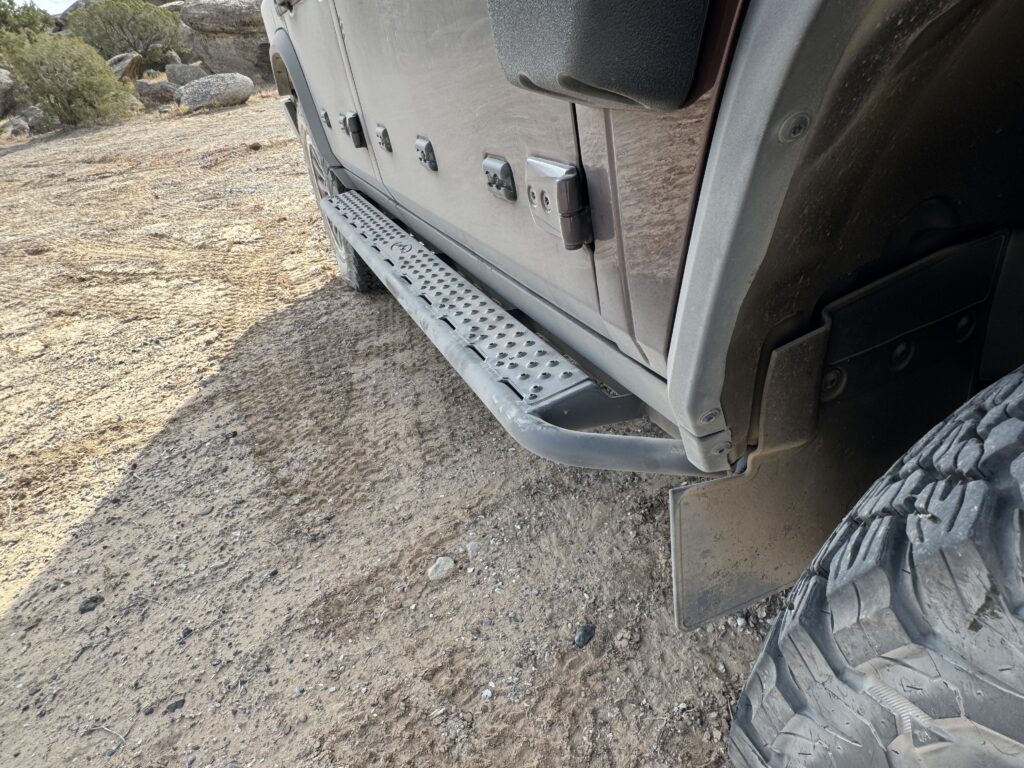

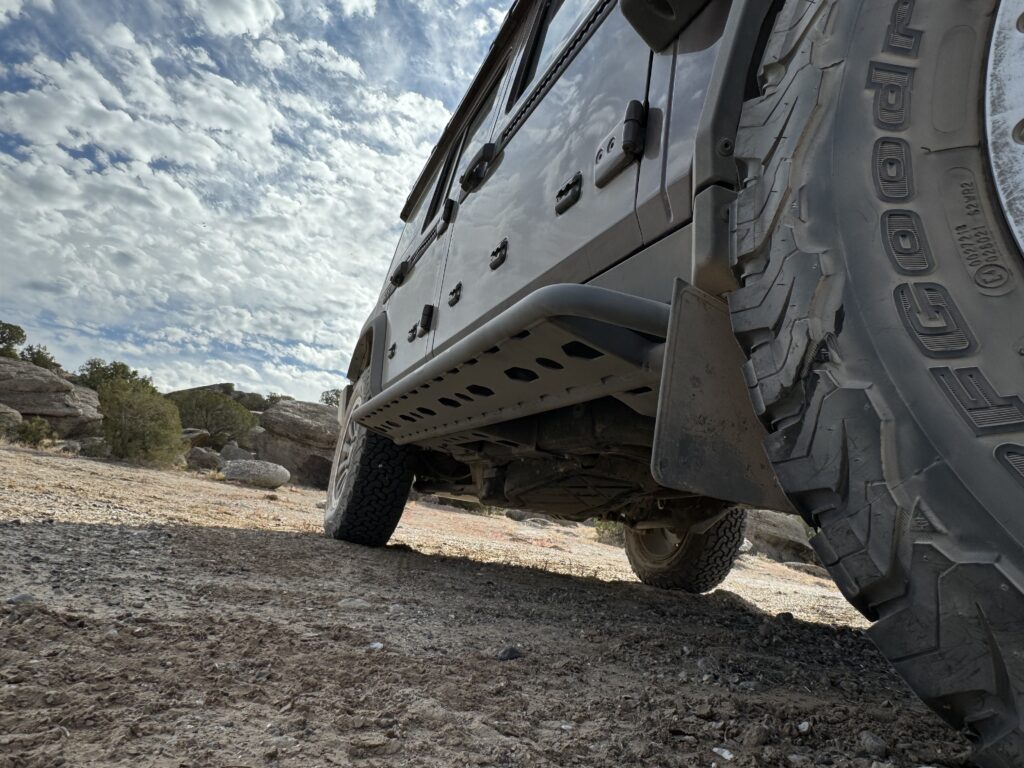

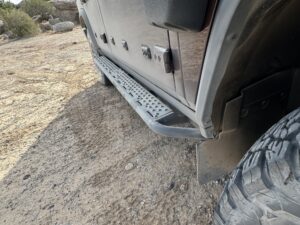

Ineos Grenadier 2022+ Trail Series Rocker Guards
Ineos Grenadier 2022+ Trail Series Rocker Guards
Comprised of 3/16" and 1/8" sheet steel and 0.120" wall high strength tubing.
Frame Mounted using OEM locations
Approx weight 125lbs
Triangular boxed structure for maximum strength and efficiency.
Tubing is comprised of 2" x 0.120" wall for the inner and 1.5" x 0.120" outer wall tubing.
Steps with aluminum tread plates assist in entering and exiting the vehicle.
Placed to maximize ground clearance.
Optional textured black powder coat (see pricing options below).

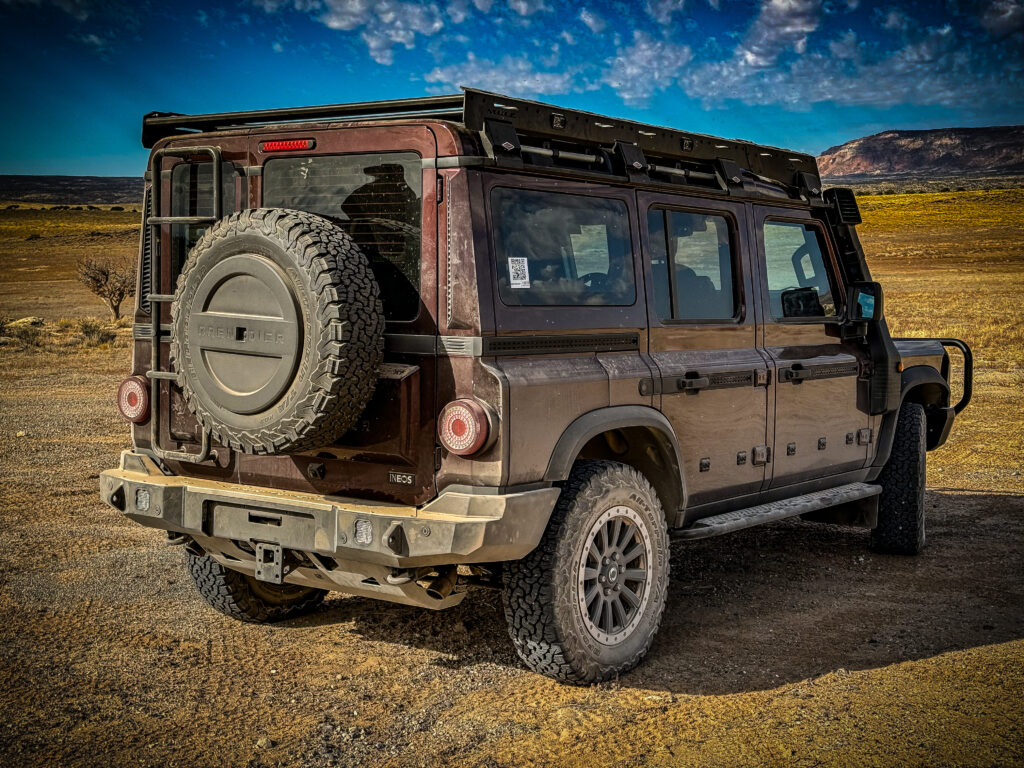

Ineos Grenadier 2022+ Trail Series Base Rear Bumper
Ineos Grenadier 2022+ Trail Series Base Rear Bumper
Constructed of high-grade precision cut 3/16" USA steel
1" thick 3/4" welded inside and out recovery shackle mounts
Includes rear skid plate weight approx 30lbs
Weighs approx. 90lbs w/ out skid
Includes rear back-up sensor hole locations*
Designed to utilize the stock receiver hitch
Optional textured black powder coat
Light ports fit up to 4" round or square lights
Designed and 100% Made in The U.S.A with US steel

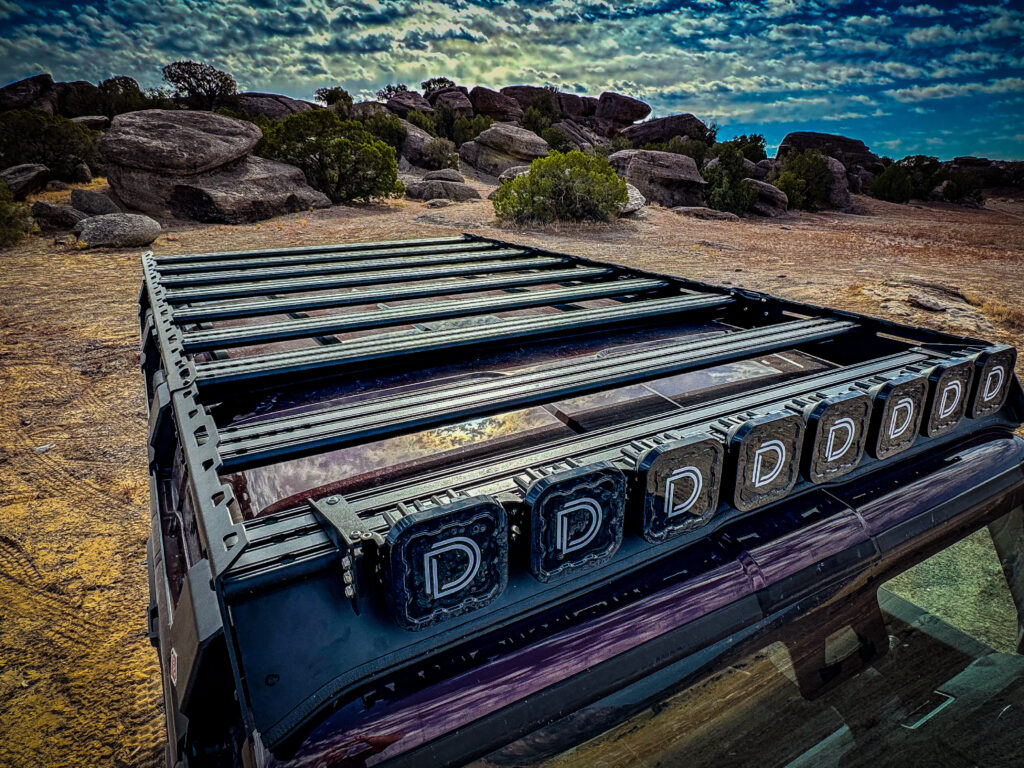

Mule SAM 2022+ Ineos Grenadier Roof Rack
Mule SAM 2022+ Ineos Grenadier Roof Rack
Lightweight, aluminum construction
Sectional Cargo (Sec-C )rack. Front section can be removed to turn rack into a mid rack
Comprised of 3/16" formed side rails mated with our proprietary HD extruded aluminum load bars
Includes integrated side light mounts (currently designed for Diode Dynamics SS2 pods)
9 anodized load bars (black powder coating optional)
Adjustable flooring design
Form-fitting around vehicle application
Textured Black powder coated side rails
Load bars come standard with anodized finish
Roof-top tent, awnings, shovel mount, etc. ready
