RAM 2500 – 3500 Front/Rear Bumpers

Ram 2500/3500 RangeMax Ultra HD Diesel Front Bumper

Ram 2500/3500 RangeMax Ultra HD Diesel Front Bumper

Introducing our front bumper product line for the Ram 2500/3500 diesel series! Built to work with both Integrated and Non-Integrated winches rated up to 18,000 lb winches.

Features

Made of sturdy 3/16" Steel construction to handle the toughest conditions and weights
Optional Hoop (Bolt-On Design)
Fits integrated / Non-Integrated winches up to 18K lbs
Side Wing Style offerings to match both stock & aftermarket fender flares
Light ports accommodate up to approx 5 1/2" light ( including Baja XL and PIAA LP 550)
Retains stock sensor hole locations (plugs included for models not requiring sensor holes)
Protects intercooler
Heavy-duty clevis mounts fit a 3/4" shackle
Designed and built 100% right here in the U.S.A.

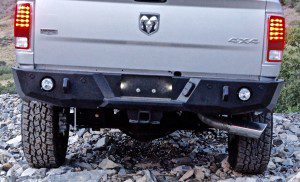

RAM RANGEMAX REAR BUMPER for 2010-2018

RAM RANGEMAX REAR BUMPER for 2010-2018

Ram 2500/3500 rear bumper for model years 2010-2018

Weighs approx. 120lbs
Rear light ports fit up to 4" round light
Optional powder coat finish
Heavy-duty shackle mounts
Comprised of 3/16" and 1/4" inner structure and a 3/16" thick outer skin
100% Designed & Made here in the U.S.A
Fits 2010-2013 models *may require some additional drilling and/or grinding
Sensor holes included. ** Due to vehicle variations and sensitivities associated with certain sensors and various accessory configurations such as large MT tires and/or low-hanging accessory with geometry that may echo or reverberate the ultrasonic sound from OEM park sensors, we cannot guarantee their use or function.

Ram 2500/3500 Gas/Power Wagon 2010-18 RangeMax Ultra Front Bumper (Gas/PowerWagon Models)

Ram 2500/3500 Gas/Power Wagon 2010-18 RangeMax Ultra Front Bumper (Gas/PowerWagon Models)

The 2010-2018 Ram 2500/3500 Power Wagon series is built to work with both Integrated and Non-Integrated winches rated up to 16,500lbs on gas models. Will fit gas, power wagon, and diesel models**winches will not fit in a diesel model, (please see our diesel model ram ultra front).

Features:

Made of sturdy 3/16" Steel construction to handle the toughest conditions and weights
Fits integrated / Non-Integrated winches up to 16.5K lbs
Side Wing Style offerings to match both stock & aftermarket fender flares (AEV)
Protects intercooler
Retains stock sensor hole locations (plugs included for models not requiring sensor holes)
Light ports accommodate approx 5 1/2" light ( including Baja XL and PIAA LP 550)
Heavy-duty clevis mounts fit a 3/4" shackle
Designed and built right here in the U.S.A.

RAM RANGEMAX FRONT WINCH BUMPER for 2010-2018

RAM RANGEMAX FRONT WINCH BUMPER for 2010-2018

RangeMax Series base model front winch bumper with optional textured black powder coat. Fits 3/4 and one ton RAM trucks model years 2010-2018

PRODUCT FEATURES:

Comprised of heavy duty 3/16 inch and 1/4 inch inner structure and 3/16 inch outer structure
Weighs approximately 120lbs lbs
Integrated feet forward winch mount included. Fits most winches with non-integrated solenoids rated between 8000-12,500 lbs (Exception - Warn M8274)
Integrated 1 inch thick shackle mounts can accommodate a 3/4 inch shackle
Integrated light ports hold a 4.75 inch round light
Made and designed in the U.S.A
This product contains chemicals known to the state of california to cause birth defects or other reproductive harm.
For more information go to www.p65warnings.gov

Product Features:

  • Made of sturdy 3/16" Steel construction to handle the toughest conditions and weights
  • Optional Hoop (Bolt-On Design)
  • Fits integrated / Non-Integrated winches up to 18K lbs
  • Side Wing Style offerings to match both stock & aftermarket fender flares
  • Protects intercooler
  • Designed and built right here in the U.S.A.

Dodge Ram 2500 (2010-2018) Dual Swing-Out Rear Bumper

Dodge Ram 2500 (2010-2018) Dual Swing-Out Rear Bumper

The Expedition One dual swing-out rear bumper with our innovative, patented locking latch system! An intuitive new way to open and close your swing arms with ease and reliability.

These carriers can be locked into place when fully opened providing the flexibility needed for overlanding and off-roading, and the ease of access you want in your daily driver. Our additional mounting options provide further customization to create the perfect setup for your outdoor adventuring needs.

Patent-Pending locking latch system design that offers an intuitive and easy way to access your truck
Universal plate backing on swing arms for limitless mounting configurations
Weighs approx. 225lbs
In-bumper light locations included fit up to 4" round light
Additional Expedition One mounting products for spare tire, hi-lift, Geri /scepter/NATO cans, TREDs/Maxtrax, etc
Holds up to a 40" tire with certain wheel/tire combinations (recommended size: up to a 37" tire)
Quick access to arm bearings for easy maintenance
Comprised of 3/16" and 1/4" inner structure and a 3/16" thick outer skin
100% Designed & Made here in the U.S.A
Fits 2010-2013 models *may require some additional drilling and/or grinding

Sensor holes included. ** Due to vehicle variations and sensitivities associated with certain sensors and various accessory configurations such as large MT tires and/or low-hanging accessory with geometry that may echo or reverberate the ultrasonic sound from OEM park sensors, we cannot guarantee their use or function.
*Please note: A narrow wheel with an extreme positive offset or a very wide tire will not work with the standard tire mount


Product Features:

  • Weighs Approx. 225lbs

Ram 2500/3500 2019+ Range Max Ultra HD Front Bumper

Ram 2500/3500 2019+ Range Max Ultra HD Front Bumper

Fits all models of 2019+ RAM 2500/3500. Optional add-ons include 2 1/2" diameter hooping and textured black powder coat.

Approx. weight: 150-180lbs depending on hoop option
Works with non-integrated winches ( may require relocation of solenoid) rated up to 18k lbs and OEM Power Wagon winch
Bumper design incorporates corner turning lights from stock bumper
Retains compatibility with front sensors and cameras (can be ordered without sensor holes as an additional option)
Multiple winch access points for easy use while also providing extra airflow for engine
Light ports accommodate approx 5 1/2" light ( including Baja XL and PIAA LP 550)
Available as a base front bumper or with either a single hoop or full wrap-around bull-bar style hoop (shown in photo)
*This bumper may NOT be compatible with the AEV fender flares and would likely require significant cutting and modification to work with them.


2019 RAM SEMA BUILD Specs (pictured above):

Expedition One Bullbar front bumper, Dual rear Bumper, and full Mule MAP bedrack kit with Baki rack and add-on mule tool clamps
PIAA LP 550 lights ( front bumper) PIAA LP 530 lights ( rear bumper)
OEM Power Wagon winch with Factor 55 ProLink
BDS 4" lift with Fox coilover
38" Toyo MT tires
Dropstar custom painted wheels
AMP research steps
DMOS Shovel
Expedition One Quad Geri can mount with Expedition One Geri water cans
Freespirit Recreation Rooftop tent

Product Features:

  • Comprised of heavy duty 3/16 inch and 1/4 inch inner structure and 3/16 inch outer structure
  • Weighs approximately 120lbs lbs
  • Integrated feet forward winch mount included. Fits most winches rated between 8000-12,500 lbs (Exception - Warn M8274)
  • Integrated 1 inch thick shackle mounts can accommodate a 3/4 inch shackle
  • Standard feature is three light mount tabs for auxiliary lights
  • Integrated light ports hold a 4.75 inch round light
  • Made and Designed in the U.S.A.

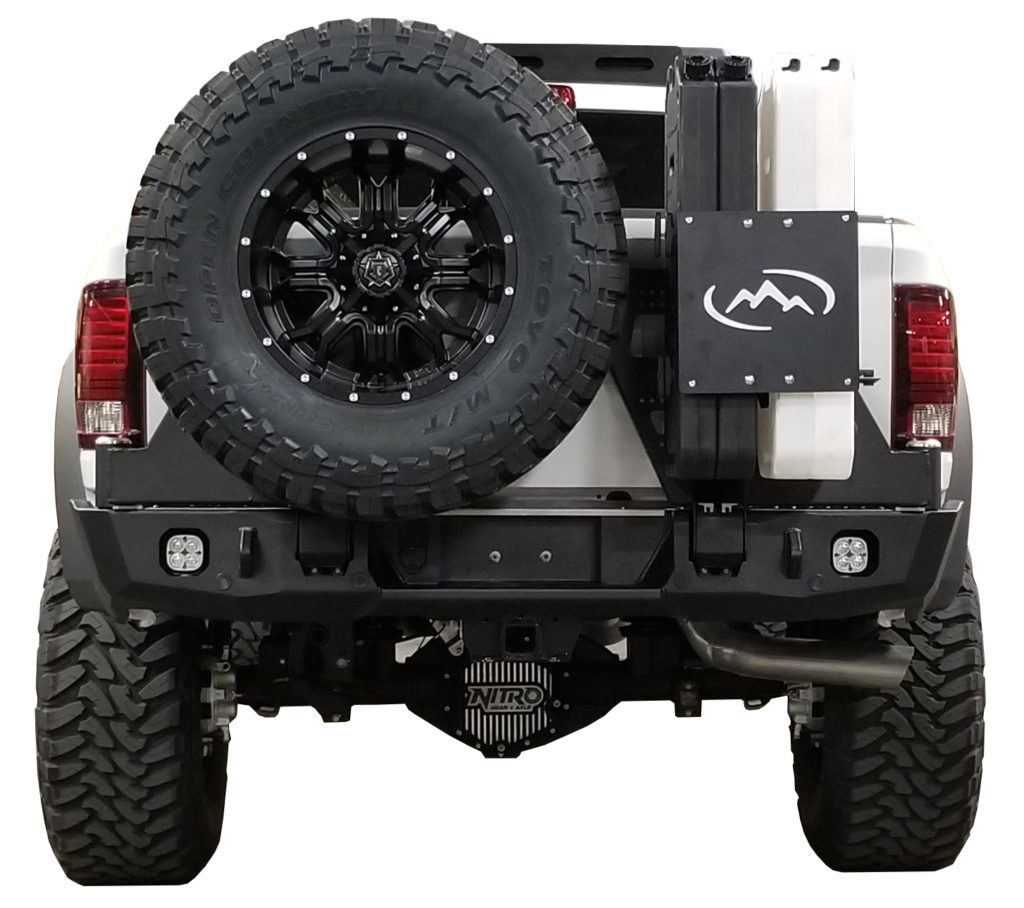

RAM 2500/3500/Power Wagon 2019+ Dual Swing Rear Bumper

RAM 2500/3500/Power Wagon 2019+ Dual Swing Rear Bumper

Introducing the new Expedition One dual swing-out rear bumper for the RAM 2019+ with our innovative, patent-pending locking latch system! An intuitive new way to open and close your swing arms with ease and reliability.



These carriers can be locked into place when fully opened providing the flexibility needed for overlanding and off-roading, and the ease of access you want in your daily driver. Our additional mounting options provide further customization to create the perfect setup for your outdoor adventuring needs.



Patent-Pending locking latch system design that offers an intuitive and easy way to access your truck
Universal plate backing on swing arms for limitless mounting configurations
Works with Power Wagon models
Weighs approx. 200lbs
Additional Expedition One mounting products for spare tire, hi-lift, Geri /scepter/NATO cans, TREDs/Maxtrax, etc
Holds up to a 40" tire with certain wheel/tire combinations (recommended size: up to a 37" tire)
Optional Back-Up Camera Relocation bracket relocates to above the license plate and includes plug for oem location.
Quick access to arm bearings for easy maintenance
Comprised of 3/16" and 1/4" inner structure and a 3/16" thick outer skin
100% Designed & Made here in the U.S.A

Sensor holes included. ** Due to vehicle variations and sensitivities associated with certain sensors and various accessory configurations such as large MT tires and/or low-hanging accessory with geometry that may echo or reverberate the ultrasonic sound from OEM park sensors, we cannot guarantee their use or function.

Product Features:

  • Comprised of heavy duty 3/16 inch and 1/4 inch inner structure and 3/16 inch outer structure
  • Weighs approximately 120lbs lbs
  • Integrated 1 inch thick shackle mounts can accommodate a 3/4 inch shackle
  • Made and Designed in the U.S.A.

RAM 2500/3500/Power Wagon 2019+ Base Rear Bumper

RAM 2500/3500/Power Wagon 2019+ Base Rear Bumper

Introducing the all-new Expedition One rear bumper for the 2019+ RAM 2500/3500!

Weighs approx. 120lbs
Will work on Power Wagon models
Comprised of 3/16" and 1/4" inner structure and a 3/16" thick outer skin
100% Designed & Made here in the U.S.A
Sensor holes included.
** Due to vehicle variations and sensitivies associated with certain sensors and various accessory configurations such as large MT tires and/or low-hanging accessory with geometry that may echo or reverberate the ultrasonic sound from OEM park sensors, we cannot guarantee their use or function.
